PT Mettoledo • Products • WEIDA HDPE Pipe

STRENGTH • DURABILITY • COST EFFECTIVE

Specially Designed to be used with Engineering Grade Floline 3-W Pipes

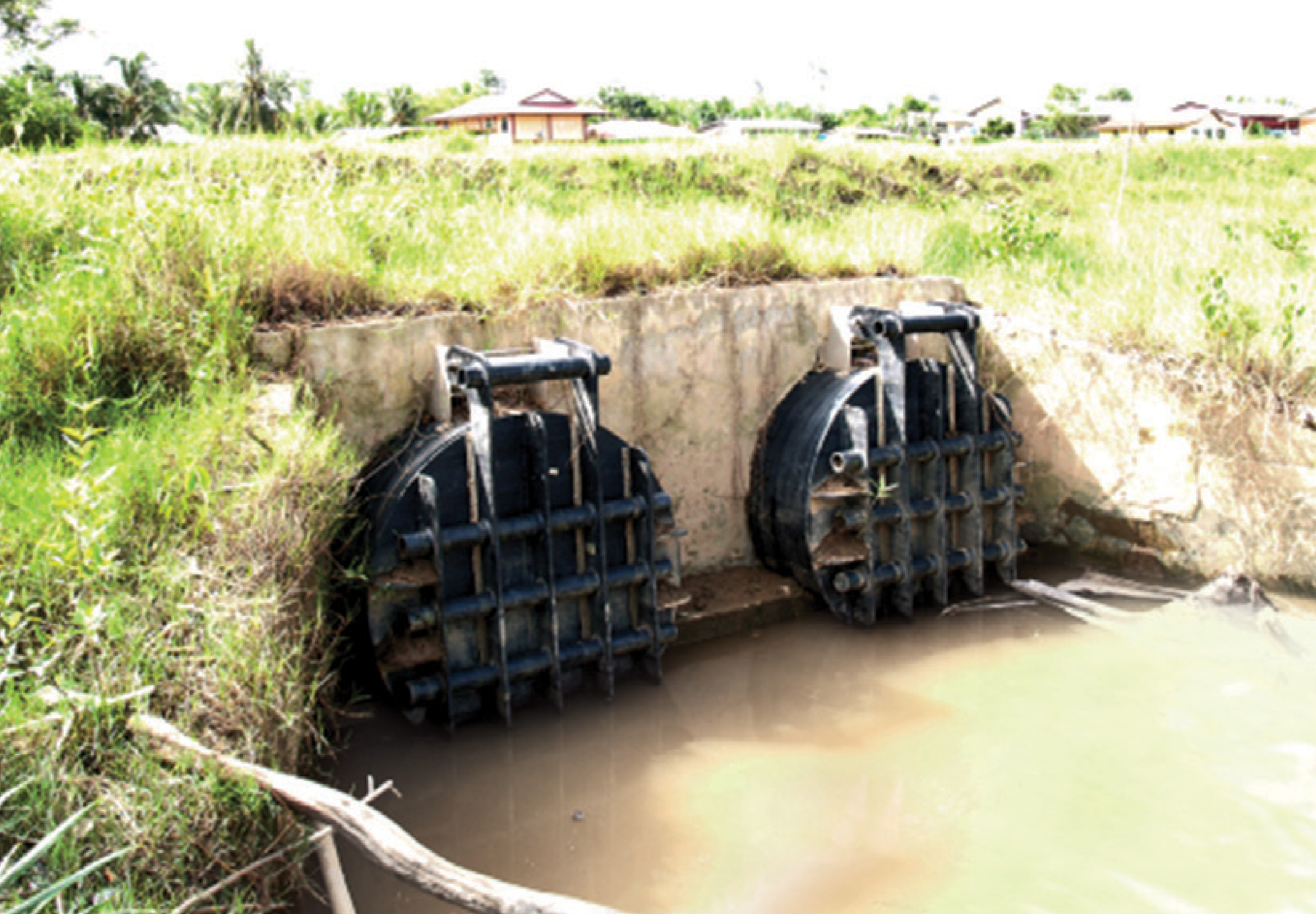

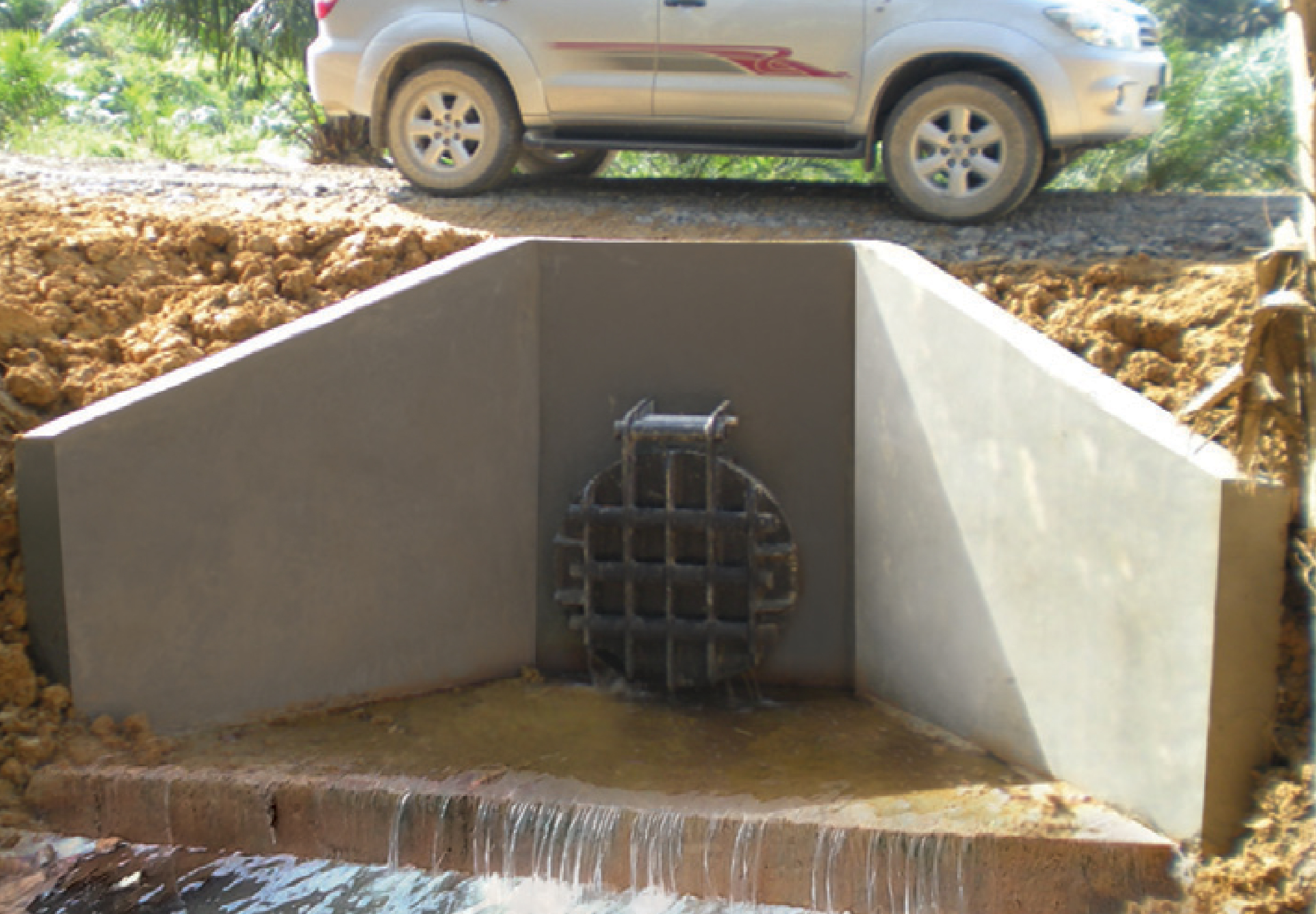

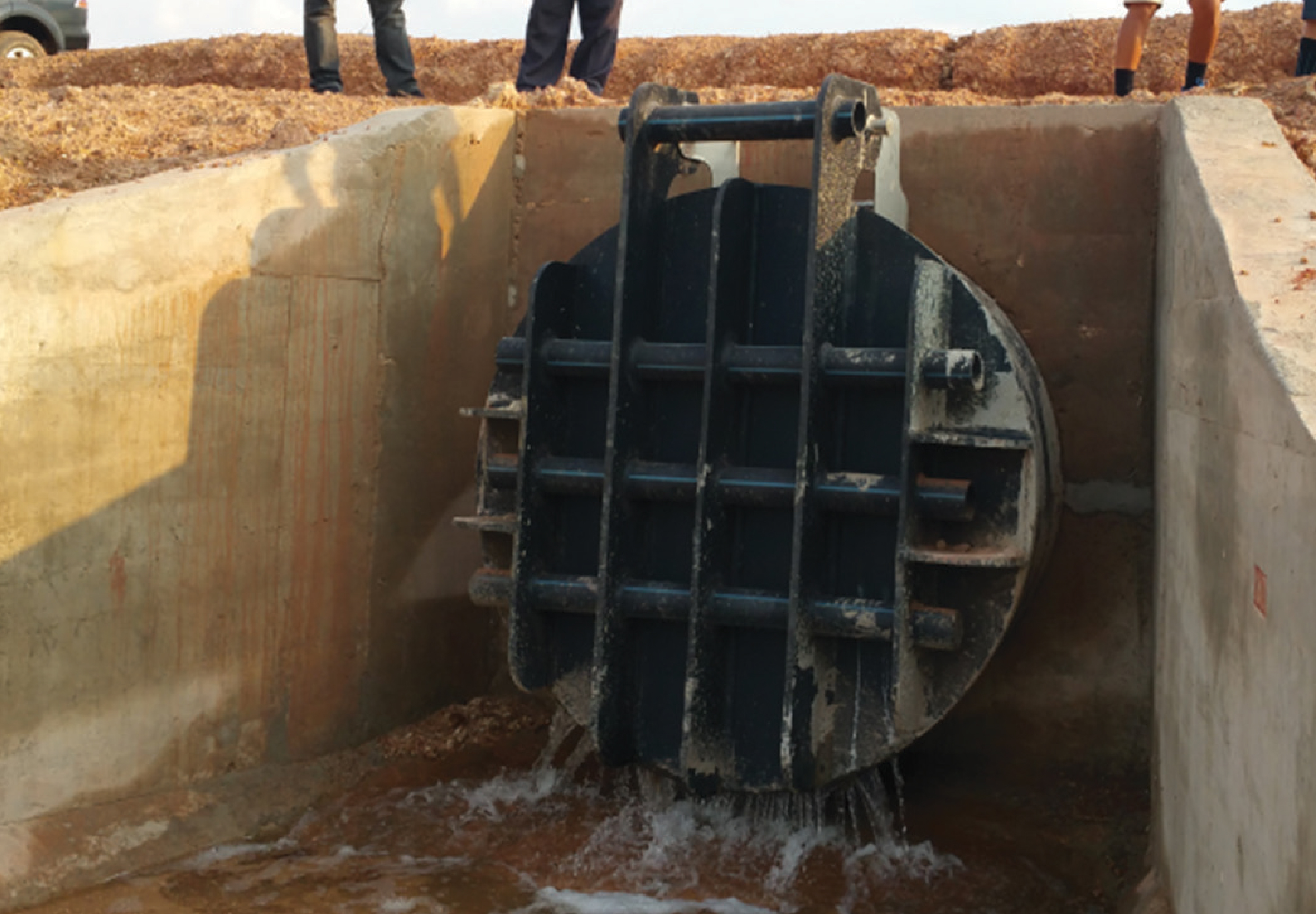

Applications

Used in agriculture, irrigation, drainage and flood management.

Tidal control
Prevent backflow in washout lines
Prevent intrusion of salt water during high tide

Flogates for water level control

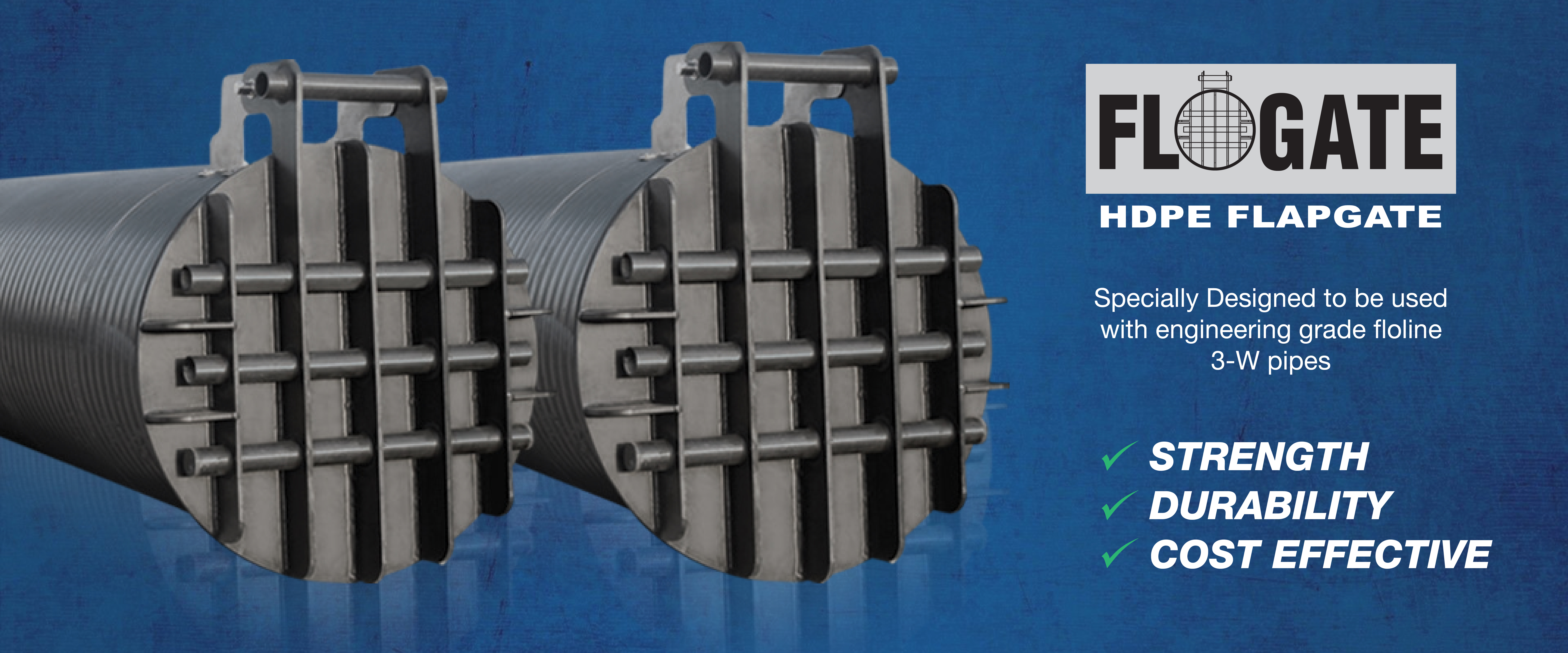

Flogates HDPE Pipe-Mounted Flapgate

FLOGATE flap gates are self-operating control gates, used to maintain water level differences between the 2 sides of the gates by allowing unidirectional flow. Manufactured from premium engineering-grade HDPE sheet panels, FLOGATE gates have no machanical or electrical operated mechanism, nor does it need human intervention to work.

FLOGATE flap gates are pre-installed onto HDPE culverts using strong stainless steel (SS304) hinges. The FLOGATE incorporates the proprietary RS polyethylene seal, which provide good sealing performance against backflow. The RS seal is tested to meet the performance condition in BS 7775:2005

Product Features

EXCEPTIONALLY STRONG & TOUGH HDPE Sheets
GOOD SEAL PERFORMANCE using proprietary RS polyethylene seal system
UV RESISTANT & LIGHTWEIGHT long-lasting HDPE material
FAST INSTALLATION as FLOGATES comes preinstalled on culverts
MINIMAL MAINTENANCE & OPERATIONS COSTS as gates are self-regulating without any electrical mechanism and is corrosion resistant

RS SEAL = Tested by SIRIM under requirement as stated in Clause 5.2.1.1 of BS 7775:2005
